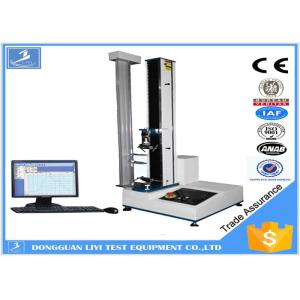

Single Column Leather Tensile Testing Machines 2KN With Microcomputer Display
Detailed Product Description
| Accuracy: | ±0.5% | Capacity: | 5, 10, 20, 25, 50, 100, 200kg |
| Elongation Accuracy: | 0.001mm | Max. Stroke: | 1000mm (including Fixture) |
| Motor: | AC Motor | Power: | 20-300mm/min (adjustable ) |
| Resolution: | 1/100,000 | Sensor: | Load Cell |
| Type: | Tensile Tester | Port: | 1000mm (including Fixture) |
Single Column Leather Tensile Testing Machines 2KN With Microcomputer Display
Design standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Characteristics:
1. That Using the computer as the main control machine plus the special testing software of our
company can conduct all of testing parameter, work state, collecting data&analysis, result display
and printing output.
2. Have steady performance, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.
Specifications:
| Model | 1065 | |
| Range of speed | 0.1~500mm/min | |
| Motor | Panasonic sevor motor | |
| Resolution | 1/250,000 | |
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional |
| Stroke | 650mm(excluding clamp) |
| Accuracy | ±0.5% |
| Force relative error | ±0.5% |
| Displacement relative error | ±0.5% |
| Test speed relative error | ±0.5% |
| Effective testing space | 120mmMAX |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Operation method | Windows operation |
| Weight | 70kg |
| Dimention | (W×D×H)58×58×125cm |
Safety Device:
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and british system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function;
10. Have test data arithmetic analysis function;
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics.
Products shows:
