Liyi Pulling Force Equipment Button Pull Testing Machine

Name: Liyi Pulling Force Equipment Button Pull Testing Machine
Brand: Liyi
Price: 780.00 USD

Brand Name : Liyi

Certification : CE ISO

Place of Origin : Guangdong, China

MOQ : 1 Set/Sets

Price : $780.00 - $2,280.00/ Set

Payment Terms : T/T

Supply Ability : 200 Set/Sets per Month

Delivery Time : 1 sets needs 15 days,>1 sets to be negotiated

Packaging Details : Standard export wooden case

Load capacity : 200N

Instrument dimension : 240*290*750mm(L*W*H)

Diameter of pressing ring : ring: 15mm 35mm

Readability : 0.1N

Load gauge accuracy : ±0.2% of full scale

Instrument weight : 35kg

Standard : ASTM D 4846

Contact Now

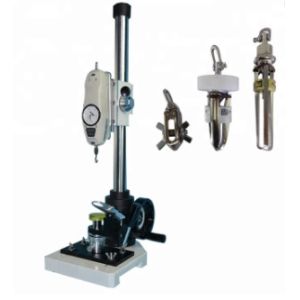

Liyi Pulling Force Equipment Button Pull Testing Machine

Product Description

Digital Snap Button Pullout tester . To assess the snap attachment strength of button which is very important to design and manufacturer of garments of infants and children’s wearing. The measurement of the uniform force applied to the snap attachment shall be recorded by means of a force-measuring device .

Characteristics:

1. The digital meter made by IMADATM in Japan, with high accuracy.

2. Grasp clamp made by stainless steel, durable and easy to operate.

3. Many grasps clamp attached, can perform many snap strength tests.

4. The structure special designed, and the test result with high accuracy.

5. The TSE-B006 IMADATM is imported with original packaging, appointed and recognized by the superstore like Carrefour, Wal-Mart and so on. It’s digital incision ensures the accuracy of gripping during testing.

6. The TSEB006D, whose grip wall is special made a block groove, to ensures the accuracy of gripping during testing, in case that the buttons fall down during testing.

7.The operating handler is on the side face not the above position, which is a Humanity design for easy operating.

8. The TSE-B006C the concave buttons clamp- Universal Model is digital incision, to promote the fixing degree.

Specifications

Load capacity	200N
Load gauge accuracy	±0.2% of full scale
Readability	0.1N
Diameter of pressing ring	15mm 35mm
Instrument dimension	240×290×750mm(L×W×H)
Instrument weight	35kg
Standard	ASTM D 4846

Product Effects

Liyi Pulling Force Equipment Button Pull Testing Machine

Liyi Pulling Force Equipment Button Pull Testing Machine Images
